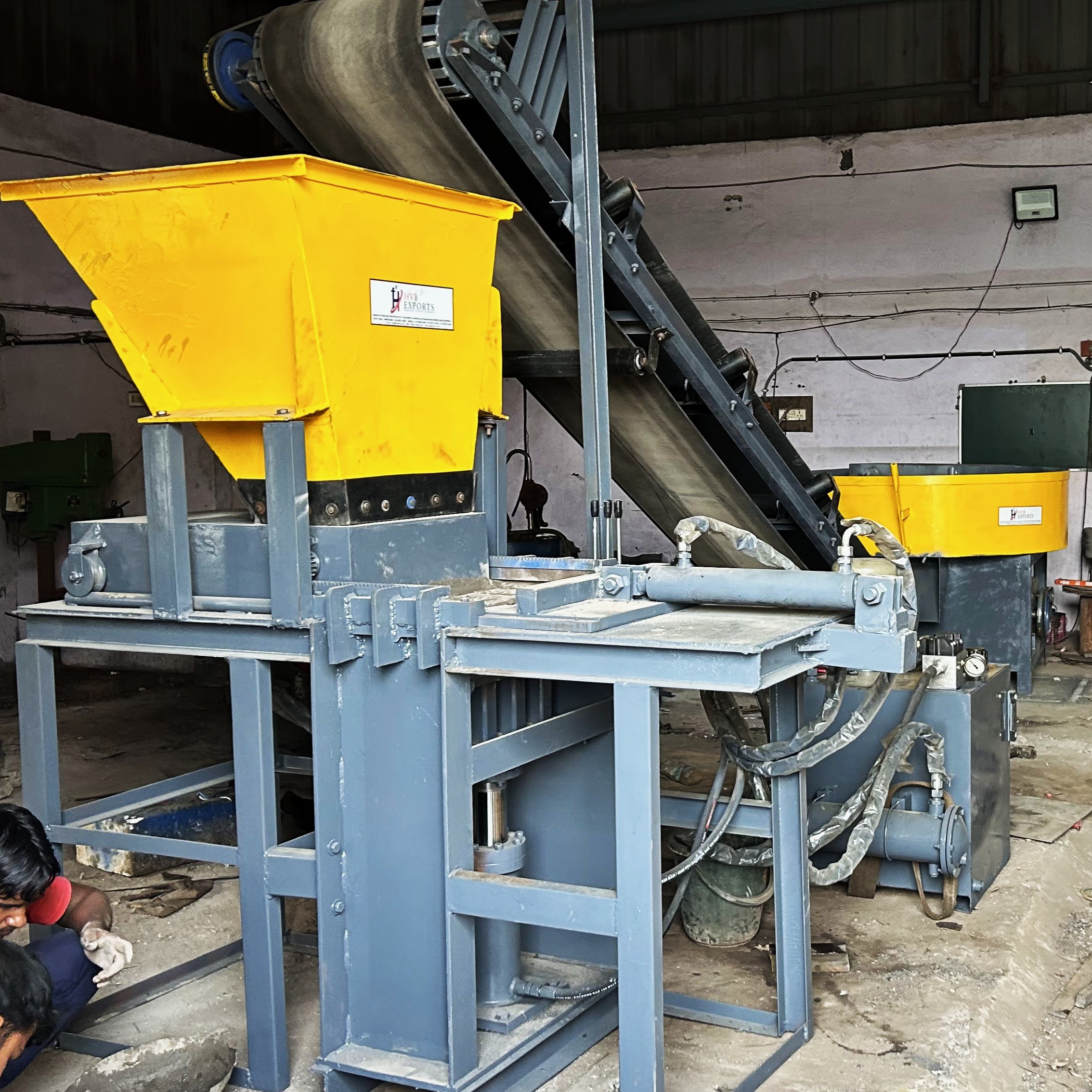

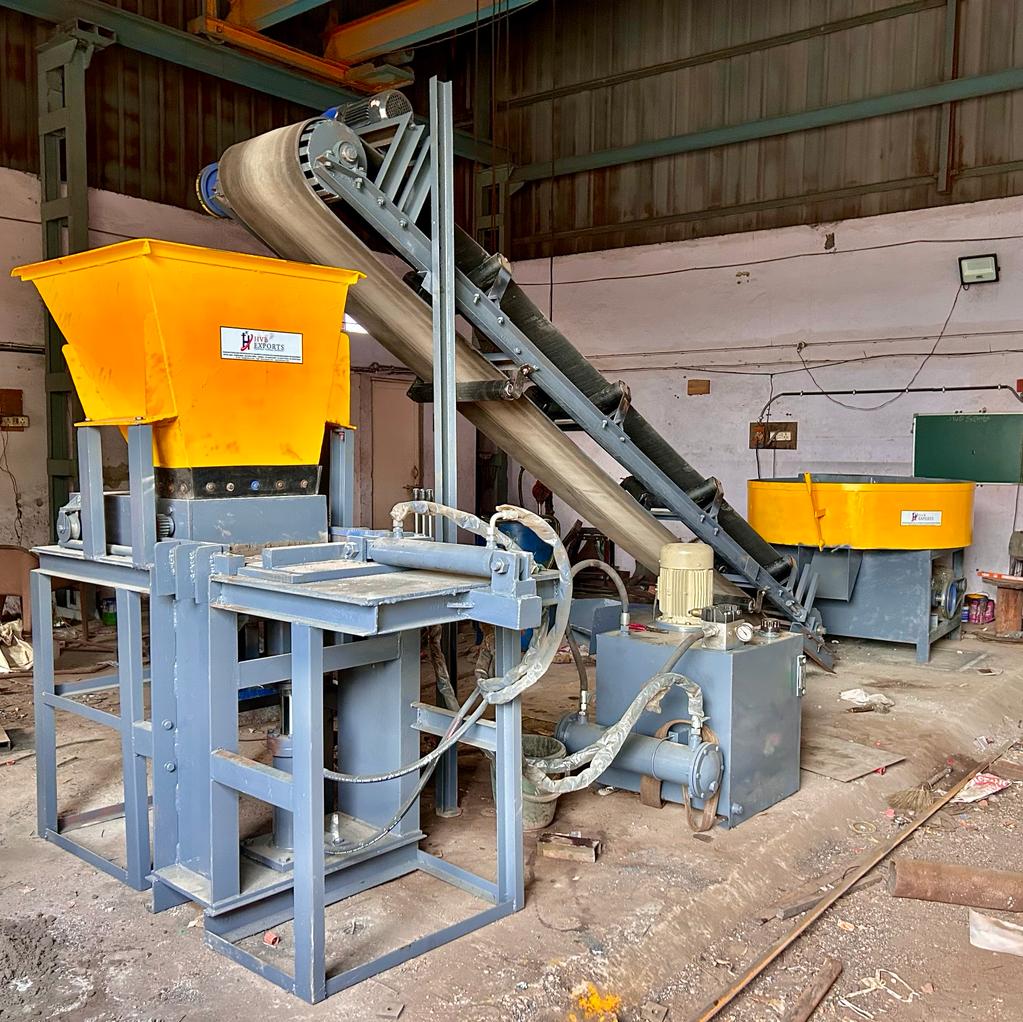

Bottom Press Fly Ash Brick Making Machine (Full Setup)
4 Cavity (Machine + Mixer + Conveyor Belt)
₹520000.00
If you are looking for a high-speed, efficient, and durable solution for brick manufacturing, the Fly Ash Bricks Machine (4 KVT Cement Brick Making Machine) from HVB Exports is the perfect choice. Designed for small-scale and large-scale brick manufacturers, this machine offers high productivity, low maintenance, and energy efficiency.
Whether you are starting a new brick-making business or upgrading your existing setup, this machine is built to deliver excellent performance. With 80-ton hydraulic pressure, 4 bricks per stroke, and a daily capacity of 5,000-7,000 bricks, it ensures seamless production with minimal labor.
Pressure Capacity: 1800–3000 PSI (Adjustable)
Per Stroke Output: 4 Bricks
Production Capacity: 500–700 Bricks/Hour
Total Power Requirement: 14.5 HP (5 HP Machine + 7.5 HP Mixer + 2 HP Conveyor Belt)
Power Supply: 3 Phase Connection Required
1️⃣ Main Press Machine
4 Bricks per Stroke
80 Ton Hydraulic Pressure
Hydraulic-Operated Material Feeder & Top Plate
250–300 Kg Capacity Hopper
2️⃣ Hydraulic Tank
150 Ltr Capacity with High-Speed Pump & Oil Filter
80 Ton Pressure with Adjustable Speed
5 HP Crompton Make Motor
Pressure & Speed Controller
Double Pump Setup
Inbuilt Oil Cooler
3️⃣ Pan Mixer – 1 Unit
Diameter: 5 Feet
Capacity: 450–500 Kg
Mixing System: 2 Rollers + 2 Blades
7.5 HP Motor with Gear Box
4️⃣ Conveyor Belt – 1 Unit
Length: 15–20 Feet
Width: 600 mm
Belt Type: Nylon-Reinforced Rubber
2 HP Motor
