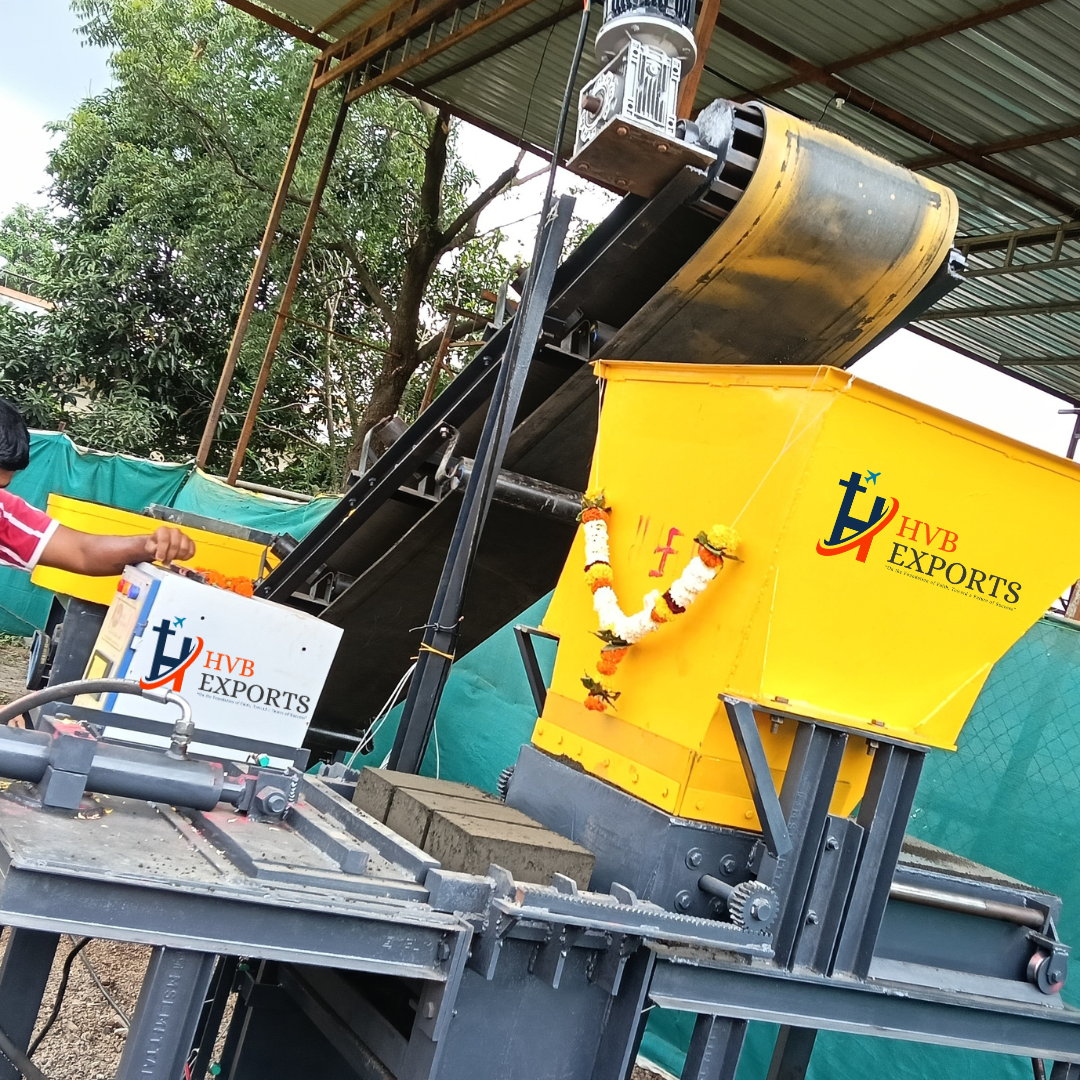

Automatic Fly Ash Brick Making Machine
4 Cavity (Machine + Mixer + Conveyor Belt + Panel)
₹600000.00
Automatic Hydraulic Fly Ash Bricks Machine by HVB Exports
This next-generation brick-making machine is engineered for high efficiency, safety, and consistent production. With 80 Ton Hydraulic Pressure, Smart Control Panel with Touchscreen HMI, and fully automated operations, it ensures bulk production of Fly Ash Bricks with minimal labor and maximum accuracy. Designed for industrial-scale use, this machine combines strength, durability, and advanced technology to deliver the best results.
Pressure Capacity: 1800–3000 PSI (Adjustable)
Per Stroke Output: 4 Bricks
Production Capacity: 500–700 Bricks/Hour
Total Power Requirement: 14.5 HP
(5 HP Machine + 7.5 HP Mixer + 2 HP Conveyor Belt)Power Supply: 3 Phase Connection Required
1️⃣ Main Press Machine
4 Bricks per Stroke
80 Ton Hydraulic Pressure
Hydraulic-Operated Material Feeder & Top Plate
250–300 Kg Capacity Hopper
Accident-Proof Operation with Emergency Stop System
Fault Detection System – Alerts for Errors or Failures
2️⃣ Hydraulic Tank
150 Ltr Capacity with High-Speed Pump & Oil Filter
80 Ton Pressure with Adjustable Speed
5 HP Crompton Make Motor
Pressure & Speed Controller
Double Pump Setup
Inbuilt Oil Cooler
3️⃣ Smart Control Panel
4-Inch Industrial Touch Screen HMI
Mode Selector: Auto / Semi-Auto / Manual
Live Monitoring of Operations
Cycle Time Adjustment
Fault Display & System Warnings
Operator-Friendly Interface
4️⃣ Pan Mixer – 1 Unit
Diameter: 5 Feet
Capacity: 450–500 Kg
Mixing System: 2 Rollers + 2 Blades
7.5 HP Motor with Gear Box
5️⃣ Conveyor Belt – 1 Unit
Length: 15–20 Feet
Width: 600 mm
Belt Type: Nylon-Reinforced Rubber
2 HP Motor
✔️ Fully Automatic System with Touchscreen Panel
✔️ Accident-Proof & Error Warning System
✔️ High Pressure, High Output for Maximum Productivity
✔️ Industrial-Grade Build Quality for Long Life
✔️ Best for Bulk & Consistent Production
