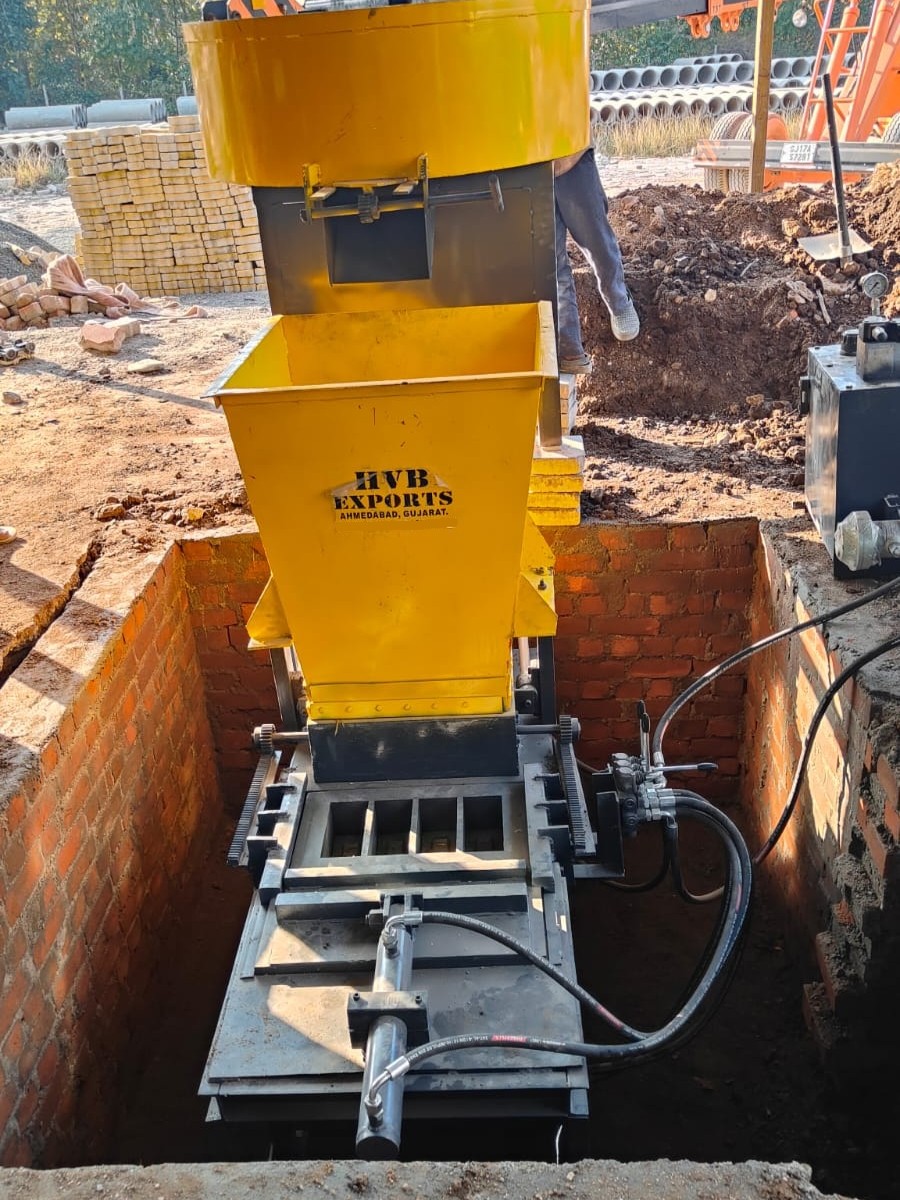

Bottom Press Brick Making Machine
4 Cavity (machine + Mixer)
₹430000.00
If you are looking for a high-speed, efficient, and durable solution for brick manufacturing, the Fly Ash Bricks Machine (4 KVT Cement Brick Making Machine) from HVB Exports is the perfect choice. Designed for small-scale and large-scale brick manufacturers, this machine offers high productivity, low maintenance, and energy efficiency.
Whether you are starting a new brick-making business or upgrading your existing setup, this machine is built to deliver excellent performance. With 80-ton hydraulic pressure, 4 bricks per stroke, and a daily capacity of 5,000-7,000 bricks, it ensures seamless production with minimal labor.
Pressure Capacity: 1800–3000 PSI (Adjustable)
Per Stroke Output: 4 Bricks
Production Capacity: 500–700 Bricks/Hour
Total Power Requirement: 10 HP (5 HP Machine + 5 HP Mixer)

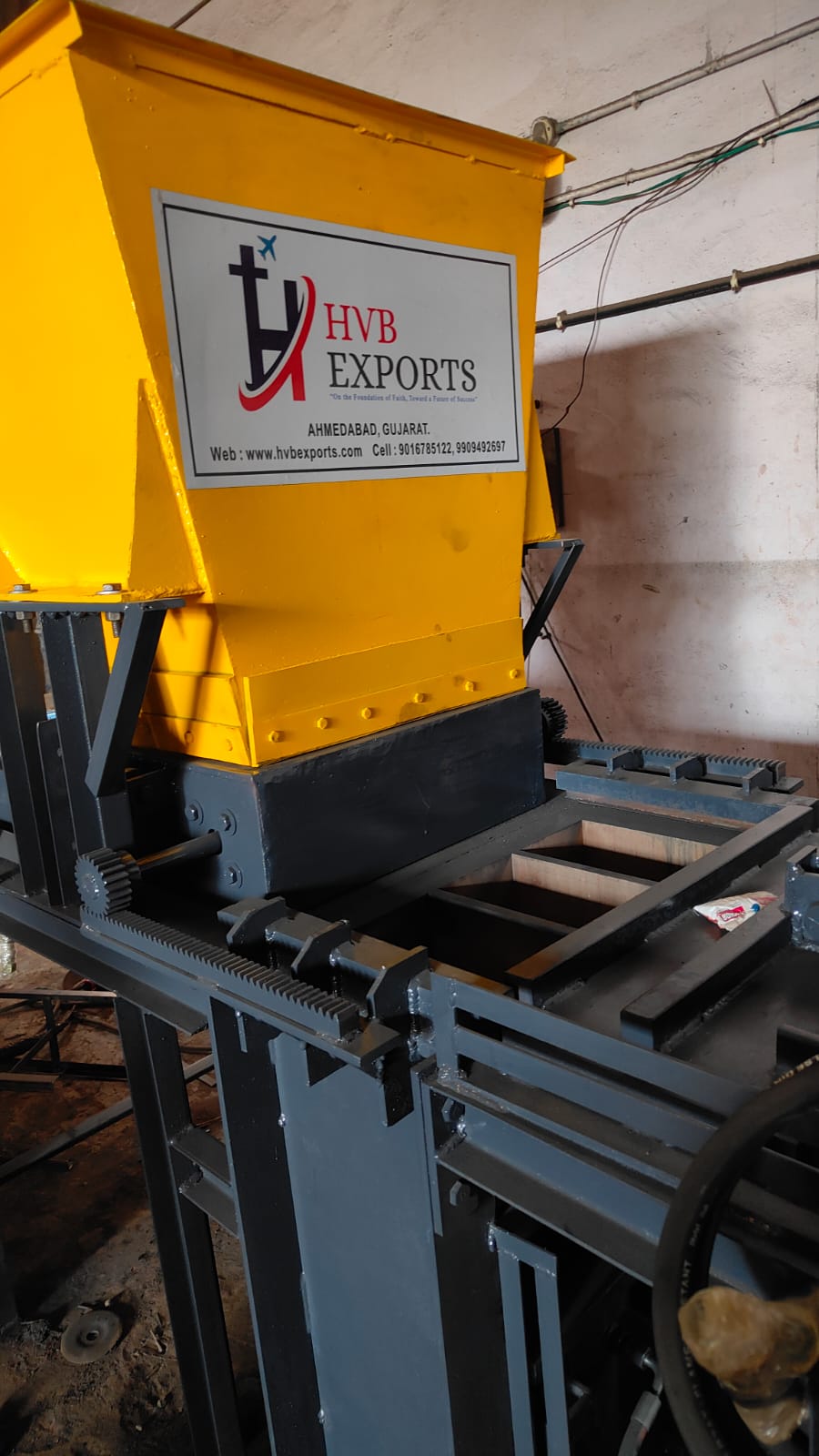

1️⃣ Main Press Machine
4 Bricks per Stroke
80 Ton Hydraulic Pressure
Hydraulic-Operated Material Feeder & Top Plate
250–300 Kg Capacity Hopper
2️⃣ Hydraulic Tank
150 Ltr Tank with High-Speed Pump & Oil Filter
Maximum Pressure: 80 Tons
5 HP Crompton Make Motor
Attached Pressure & Speed Controller Module
Double Pump Setup
Integrated Oil Cooler System
3️⃣ Pan Mixer – 1 Unit
Diameter: 4 FT
Capacity: 250 Kg
Mixing System: 2 Rollers & 2 Blade Type Mixer
Power: 5 HP Motor with Gear Box
